New Vehicles » Suzuki » KingQuad® 750AXi
Model Quick Search

$7,599.00

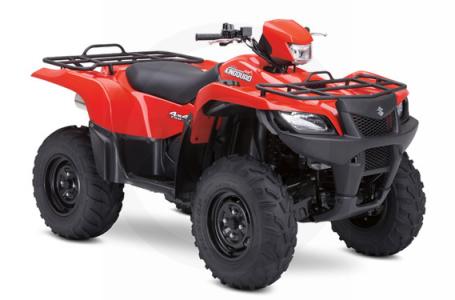

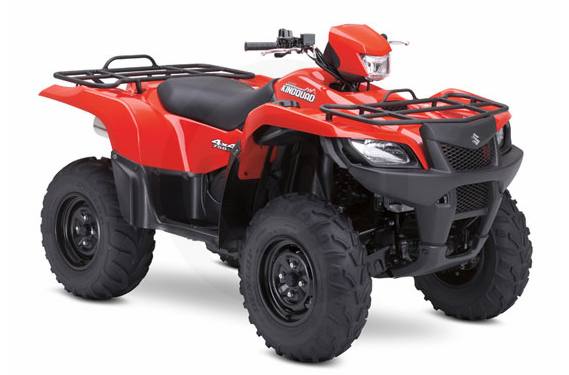

2008 Suzuki KingQuad® 750AXi
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The Suzuki KingQuad 750 is the QuadRunner® ATV like no other. Just like when it built the first four-wheeler, Suzuki bestowed upon its newest ATV both functional and sporting features. This new KingQuad 700 is designed to be not only the best all-around sport/utility ATV currently made, but the best QuadRunner ATV Suzuki has ever manufactured.


The KingQuad 750 is powered by a single-cylinder liquid-cooled DOHC engine with a bore-and-stroke of 102mm x 85mm - displacing 722cc. The big bore helps this four-stroke develop abundant torque, especially in the low- to mid-rpm range. The fuel-air mixture is delivered efficiently via Suzuki's own fuel-injection system, featuring technology tested through years of development in high-performance motorcycles.


Advantages of the KingQuad 750's fuel injection system include reduced fuel consumption overall. Also, there are no choke operations or carburetor settings to consider. Electronic fuel injection provides better throttle response and smoother engine power than a mechanical carburetor. Finally, the KingQuad 750 has the ultimate power-delivery drivetrain and transmission with three drive modes available: two-wheel drive, four-wheel drive, and front differential-locked four-wheel drive.


Built around an all-new high-tensile steel frame, the KingQuad's suspension is fully independent. It's designed to maintain the necessary rigidity of a hard-working utility ATV as well as the light weight of an easily manageable recreational four-wheeler. New front and rear brake systems help smoothly slow the KingQuad 750 -- the front end features hydraulic brakes with 200mm discs at each wheel and a 34mm caliper piston housed in rigid caliper to ensure firm and reliable braking. The KingQuad 700 rides on newly designed, 25-inch, bias-ply Dunlop tires mounted on pressed-aluminum-alloy wheels.


The KingQuad 750 carries on the aggressive sport/utility look found in other members of the Suzuki QuadRunner family, like the Vinson 500 and the QuadSport® Z400. With its high-arched fenders and sharp headlights, the Suzuki KingQuad 750 combines sporty appeal with utility strength.

    Engine Features
    • Powerful 695cc, DOHC, single-cylinder, liquid-cooled engine designed for a wide powerband and high durability
    • Cylinder canted forward 48 degrees for lower center of gravity, reduced engine height and lower seat height
    • Compact 4-valve cylinder head with large 36mm intake valves and straight intake ports for increased cylinder charging efficiency - includes lightweight magnesium valve cover
    • Semi-gear driven valve system minimizes cam sprocket size allowing a short/narrow cylinder head design and reduced overall engine height
    • Plasma-spray cylinder coating (SPSC) allows lightweight cylinder construction without a sleeve for improved resistance to heat and friction
    • Durable, forged aluminum piston with L-shaped top compression ring for increased ring seal and flutter resistance
    • Electronic fuel injection system provides excellent throttle response, fuel efficiency and quick engine starts under all operating conditions
    • QuadMatic CVT-type automatic transmission designed for maximum versatility and convenience - fender-mounted gate-type shifter operation for high/low forward ranges, plus neutral and reverse
    • Advanced engine brake system minimizes free-wheeling to reduce downhill speed
    • Electric 2WD, 4WD and differential-lock 4WD - convenient handlebar-mounted push-button controls allow the rider to easily select the right setting for any traction condition
    • Compact torque-sensing limited-slip front differential
    • High capacity aluminum radiator with large diameter cooling fan for stable engine operating temperature
    • High-mounted, snorkel-type air intake system, plus quick-access airbox and air filter for easy maintenance
    • Spin-on-type oil filter - simplifies oil change maintenance
    Chassis Features
    • Special version KingQuad featuring Advantage® Max-4 HDT camouflage bodywork - Exclusive to Suzuki - Includes new Black-painted wheels for improved appearance
    • Comfortable T-shaped seat with tapered design for rider mobility, plus thick padding for support
    • High-tensile steel frame with special attention given to a balance of rigidity and weight for optimum chassis performance and a comfortable ride
    • Independent double A-arm front suspension with 7.1 inches of wheel travel - includes large diameter shock absorbers with 5-way spring preload adjustment
    • Fully independent, I-beam rear suspension with long suspension travel (8.1 inches) - includes 5-way preload adjustable shock absorbers and large diameter rear sway-bar
    • Large, 200mm diameter front disc brakes with new design single-piston calipers designed for strong, reliable braking performance
    • Sealed, multi-plate rear brake system - sealed, clutch-type design provides high durability, reduced unsprung weight and low-maintenance
    • New-design pressed-aluminum wheels for reduced unsprung weight and more positive suspension performance
    • Dunlop tires featuring a new tread pattern designed for optimum traction and a comfortable ride
    • Polyethylene skid plate provides front-to-rear underside protection with minimal resistance over rocks and rough terrain
    Utility/Convenience Features
    • Easy-to-read LCD instrument display - includes speedometer (mile/km selectable), odometer, twin-trip meters, hour meter, clock, fuel gauge, drive range (H,L,N,R) and drive mode (4WD, 4WD lock) - LED indicators for neutral, reverse, 4WD lock, FI/water temp. warning
    • Distinctively-styled 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light - additional 40W multi-reflector, handlebar-mounted auxiliary light
    • High output magneto generator system and large 18-amp maintenance-free battery provides extra power for cold weather starts and additional electrical accessories
    • Fender-mounted, water resistant 12V/120W electrical accessory outlet
    • Large 4.6 gallon fuel tank positioned for a low center-of-gravity - includes vacuum-operated petcock, ratchet-style fuel cap and convenient bar-type fuel gauge
    • Rugged steel-tube racks with attractive, high-quality wrinkle paint finish for increased durability and scratch resistance
    • Large 2.8 liter water resistant front storage compartment similar to Vinson 500 - includes new easy-to-open/close screw-on cap
    • High towing capacity and standard center-mounted trailer hitch
    Specifications
    • Engine: 722cc, DOHC, four-stroke, single cylinder, liquid-cooled
    • Bore Stroke: 104.0 X 85.0mm
    • Compression Ratio: 10.0:1
    • Fuel System: Fuel Injection
    • Lubrication: Wet sump
    • Ignition: CDI
    • Transmission: V-belt CVT automatic with high/low range sub-transmission, 2WD/4WD/4WD front differential lock
    • Final Drive: Shaft drive
    • Overall Length: 2120mm (83.5 in.)
    • Overall Width: 1210mm (47.6 in.)
    • Overall Height: 1245mm (49.0 in.)
    • Seat Height: 860mm (33.9 in.)
    • Ground Clearance: 260mm (10.2 in.)
    • Wheelbase: 1280mm (50.4 in.)
    • Dry Weight: 273kg (601 lbs.)
    • Suspension Front: Independent, double A-arm, oil-damped, five preload settings
    • Suspension Rear: Independent, double A-Arm oil-damped, five preload settings
    • Brakes Front: Dual hydraulic disc
    • Brakes Rear: Sealed hydraulic disc
    • Tires Front: AT 25 x 8-12
    • Tires Rear: AT 25 x 10-12
    • Fuel Tank Capacity: 17.5 liter (4.6 gal.)

    Specifications

    Engine
    Engine Type DOHC, four-stroke
    Displacement 722 cc
    Bore x Stroke 104.0 x 85.0 mm
    Cylinders Single
    Engine Cooling Liquid-cooled
    Fuel System Fuel Injection
    Starting System Ignition: CDI; Starter: Electric and recoil
    Chassis
    Front Suspension Independent, double A-arm, oil-damped, five preload settings
    Front Travel 7.1 in.
    Front Brake Type Dual hydraulic disc
    Front Tires AT 25 x 8-12
    Rear Suspension Independent, double A-Arm oil-damped, five preload settings
    Rear Travel 8.1 in.
    Rear Brake Type Sealed hydraulic disc
    Rear Tires AT 25 x 10-12
    Frame High-tensile steel
    Dimensions/Capacities
    Dry Weight 601 lbs. (273 kg)
    Towing Capacity High towing capacity and standard center-mounted trailer hitch
    Fuel Capacity 4.6 gal (17.5 l)
    Ground Clearance 10.2 in. (260 mm)
    Machine Dimensions (LxWxH) 83.5 x 47.6 x 49.0 in. (2120 x 1210 x 1245 mm)
    Wheelbase 50.4 in. (1280 mm)
    Drive Train
    Final Drive Shaft drive
    Transmission V-belt CVT automatic with high/low range sub-transmission, 2WD/4WD/4WD front differential lock
    General
    Speedometer LCD
    Odometer LCD
    Lighting 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light - additional 40W multi-reflector, handlebar-mounted auxiliary light
    Colors Advantage® Max-4 HDT
    Warranty 6 month limited warranty

    Compare Models

    		 Print








    Year 2008
    Manufacturer Suzuki
    Model KingQuad® 750AXi
    Style Utility
    MSRP* $7,599.00
    Chassis
    Front Suspension Independent, double A-arm, oil-damped, five preload settings
    Front Travel 7.1 in.
    Front Brake Type Dual hydraulic disc
    Front Tires AT 25 x 8-12
    Rear Suspension Independent, double A-Arm oil-damped, five preload settings
    Rear Travel 8.1 in.
    Rear Brake Type Sealed hydraulic disc
    Rear Tires AT 25 x 10-12
    Frame High-tensile steel
    Dimensions/Capacities
    Dry Weight 601 lbs. (273 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity High towing capacity and standard center-mounted trailer hitch
    Fuel Capacity 4.6 gal (17.5 l)
    Ground Clearance 10.2 in. (260 mm)
    Machine Dimensions (LxWxH) 83.5 x 47.6 x 49.0 in. (2120 x 1210 x 1245 mm)
    Wheelbase 50.4 in. (1280 mm)
    Drive Train
    Drive Train
    Final Drive Shaft drive
    Transmission V-belt CVT automatic with high/low range sub-transmission, 2WD/4WD/4WD front differential lock
    Engine
    Engine Type DOHC, four-stroke
    Displacement 722 cc
    Bore x Stroke 104.0 x 85.0 mm
    Cylinders Single
    Engine Cooling Liquid-cooled
    Fuel System Fuel Injection
    Starting System Ignition: CDI; Starter: Electric and recoil
    Alternator
    General
    Speedometer LCD
    Tachometer
    Odometer LCD
    Lighting 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light - additional 40W multi-reflector, handlebar-mounted auxiliary light
    Colors Advantage® Max-4 HDT
    Warranty 6 month limited warranty
